- measuring tip: approx. 16.5 cm
- earpieces made of soft plastic
- total length: approx. 1 m
- tight ear clips
- ear clips adapted to the human head
- for preventive maintenance and servicing
Contact now: 0943.566.198 - Mr.Tin Stech or 0949.179.896 - Mr.Trang Stech
Order no.: Condition Monitoring Stethoscope PCE-S 40
Brand: PCE INSTRUMENTS
Description/Highlights

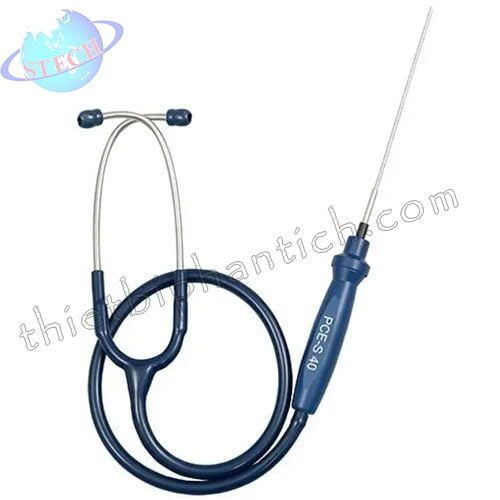

Condition Monitoring Stethoscope PCE-S 40
Acoustic stethoscope for maintenance and servicing of machines /
measuring tip approx. 16.5 cm / earpieces made of soft plastic /
total length approx. 1 m
The PCE-S 40 is a condition monitoring stethoscope which amplifies machine noises. An acoustic stethoscope makes it possible to detect noises in bearings, fan flaps, pumps and similar parts. In mechanical engineering, it is used for preventive maintenance to diagnose potential machine faults before they arise. When listening to a machine through an acoustic stethoscope, abnormal noises can be amplified, which should not occur when a machine works normally. This includes, e.g., knocking or grinding noises which imply that the interior of the machine is damaged.
An acoustic stethoscope for industrial use consists of an ear clip, a cable and a measuring tip. Our acoustic stethoscope receives the noises at the measuring tip and then transfers them directly to the ear clip via the cable. At the end of the ear clips, you will find the “earpieces“ which can be re-ordered and replaced when necessary. Since the earpieces are made of soft plastic, the ear is perfectly sealed when hearing the noises so that the human eardrum is not exposed to any background sounds.
- measuring tip: approx. 16.5 cm
- earpieces made of soft plastic
- total length: approx. 1 m
- tight ear clips
- ear clips adapted to the human head
- for preventive maintenance and servicing
Specification
Technical Specifications | |
Material of earpieces | soft plastic |
Dimensions (total) | 1 m (incl. measuring tips and ear clips) |
Dimensions measuring tips | approx. 16.5 cm |
Delivery Scope
1 x Condition Monitoring Stethoscope PCE-S 40, 1 x user's manual
