- Automatic ISO 10816-3 evaluation
- Easy to handle
- For mobile vibration measurement
- The measurement unit can be switched between the metric system and imperial units.
- Colored graphic display
- Peak-hold function
Contact now: 0943.566.198 - Mr.Tin Stech or 0949.179.896 - Mr.Trang Stech
Order no.: HVAC Meter PCE-VT 3700
Brand: PCE INSTRUMENTS
Description/Highlights
Handy entry-level device for vibration monitoring of machines and systems / HOLD function / Peak value measurement / Handheld device for mobile vibration measurement / Automatic ISO 10816-3 evaluation

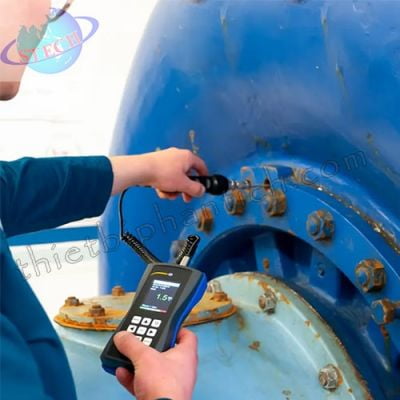

The HVAC meter is ideal for maintenance workers to quickly check vibrating parts, machines and systems. This vibration meter shows the vibration acceleration, vibration velocity and vibration displacement directly on the display. You can use the device to quickly and reliably detect machine imbalances which can lead to, for example, bearing damage. The vibration meter is equipped with a mode that allows a measurement according to ISO 10816-3 to be carried out. The vibration meter analyzes the measured values and automatically shows a good / bad evaluation on the display.
The vibration meter is supplied with a sensor on the spiral cable, magnet adapter, service bag and batteries. The display of the vibration meter is a colored graphic display, which makes operation easier, since all instructions and menu items are shown in plain text. The 12 languages in the menu of the vibration meter are easily switchable.
- Automatic ISO 10816-3 evaluation
- Easy to handle
- For mobile vibration measurement
-The measurement unit can be switched between the metric system and imperial units.
- Colored graphic display
- Peak-hold function
Specification
| Measuring range | Acceleration |
| 0.0 - 399.9 m/s² / 0.0 - 15744 in/s² | |
| Resolution | 0.1 m/s² / 3.94 in/s² |
| Accuracy @ 160 Hz | ±2 % |
| Frequency range | 1 kHz - 10 kHz |
| 10 Hz - 10 kHz | |
| Measuring range | Velocity |
| 0.00 - 399.99 mm/s / 0.00 - 15.74 in/s | |
| Resolution | 0.01 mm/s / 0.0039 in/s |
| Accuracy @ 160 Hz | ±2 % |
| Frequency range | 10 Hz - 1 kHz |
| Measuring range | Displacement |
| 0.000 - 3.999 mm / 0.000 - 0.154 in | |
| Resolution | 1 µm / 39.4 µin |
| Accuracy @ 160 Hz | ±2 % |
| Frequency range | 10 Hz - 200 Hz |
| Measurement parameters | RMS, Peak, Peak-Peak |
| Crest factor | |
| Units | switchable metric / imperial |
| Display | 2.4" LC display |
| Menu languages | English, German, French |
| Spanish, Italian, Dutch | |
| Portuguese, Turkish, Polish | |
| Russian, Chinese, Japanese | |
| Power supply | 3 x 1.5 V AA batteries |
| Operating and storage conditions | -20 ... +65 °C / -4 ... 149 °F; 10 ... 95 % r.H. |
| Dimensions | 150 x 80 x 38 mm / 5.9 x 3.1 x 1.5" |
| Weight | 170 g / 6 oz |
| Technical Data Vibration Sensor | |
| Resonance frequency | 24 kHz |
| Transverse sensitivity | ≤ 5% |
| Destruction limit | 5000 g (peak) |
| Operating and storage temperature | -55 ... +150 °C / -67 ... 302 °F |
| Housing material | stainless steel |
| Mounting thread | ¼ - 28“ |
| Dimensions | Ø 17 x 46 mm / 0.67 x 1.8" |
| Weight (without cable) | 52 g / 1.8 oz |
Delivery Scope
1 x HVAC Meter PCE-VT 3700
1 x Sensor with spiral cable PCE-VT 3xxx SENSOR
1 x Magnet adapter PCE-VT VMH
3 x 1.5 V AA batteries
1 x Quickstart guide
1 x Service bag
